Multifunction Meters
Product Details:
X
Product Description

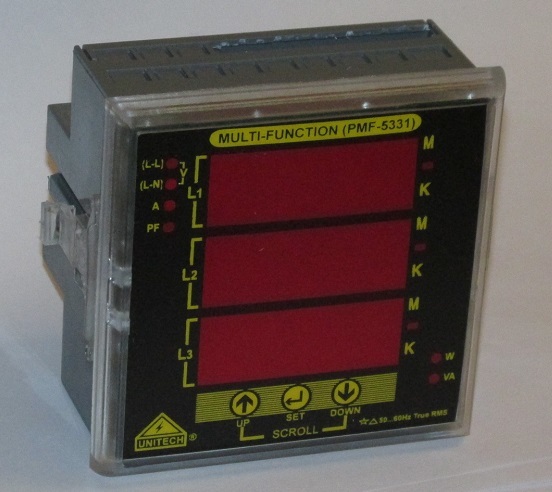

Our esteemed clients can avail from us an exclusive range of Multifunction Meters (PMF-5331). These meters are manufactured by us using the best quality raw material and advanced components. These meters are designed under the guidance of adroit professionals in line with the international quality standards. Widely used in the industries due to their optimum functionality these meters are used to measure the quality of electric signal. Checked for their functionality on various parameters, we offer these Multifunction Meters (PMF-5331) in several specifications as per the demand of the clients.
Features:
- Compact design
- Easy to install
- Reliable measurements
Physical Features
- Size: 96mm x 96mm x 65mm(depth).
- Panel cutout: 90 ² X 90 ² mm.
- Rugged Construction with ABS casing.
- Easy installation using self locking slide locks.
- Touch Proof terminations.
- Terminal suitable for both fork type & pin type thimble lugs.
- Front protection is IP-55 category.
- Robust packing for safe transportation.
Technical Features :
- Simultaneous display of three instantaneous parameters grouped page wise.
- KWh displayed in 10 digit format.
- Run hour displayed in 8 digit hour and minutes format.
- Accuracy- Class 1.
- CT primary range1A to 9999A programmable.
- CT secondary range 0.5A to 5A programmable.
- PT programmable.
- Metering Standard- IEC 62053-21/22.
Parameters Displayed
Voltage(Line to Line)
Voltage(Line to Neutral)
Current
Frequency
Power Factor(PF)
kW
kVA
kWh
RPM
Run hour
DIGITAL COMMUNICATION:
RS 485 standard, communication capability using Modbus RTU protocol.
The baud rate can be adjusted from 1200 bps to 19200 bps.
